Mask R-CNN

Problem

Framing

Instance segmentation needed detector-grade recognition and pixel-accurate masks in one model, but RoIPool broke RoI-to-pixel alignment. Mask R-CNN closes this with a parallel mask head plus quantization-free RoIAlign, reaching 35.7 mask AP on COCO test-dev at 5 fps.

Currently Used Methods

Foundational

• @renFasterRCNN2015 — two-stage detection with shared RoI features.
  • Limitation in context: no mask branch, and RoIPool misaligns pixel outputs.
• Fully Convolutional Networks for Semantic Segmentation — dense semantic labeling with fully convolutional prediction.
  • Limitation in context: no instance separation for overlapping objects.
• Multi-task Network Cascades — cascaded detection, box, and mask stages.
  • Limitation in context: more complex pipeline and lower COCO mask AP.
• FCIS: Fully Convolutional Instance-aware Semantic Segmentation — position-sensitive score maps for instance masks.
  • Limitation in context: overlap artifacts and weaker COCO results.
• @heDeepResidualLearning2016 — residual backbones for strong visual features.
  • Limitation in context: backbone strength alone does not fix alignment.

Proposed Method

Architecture

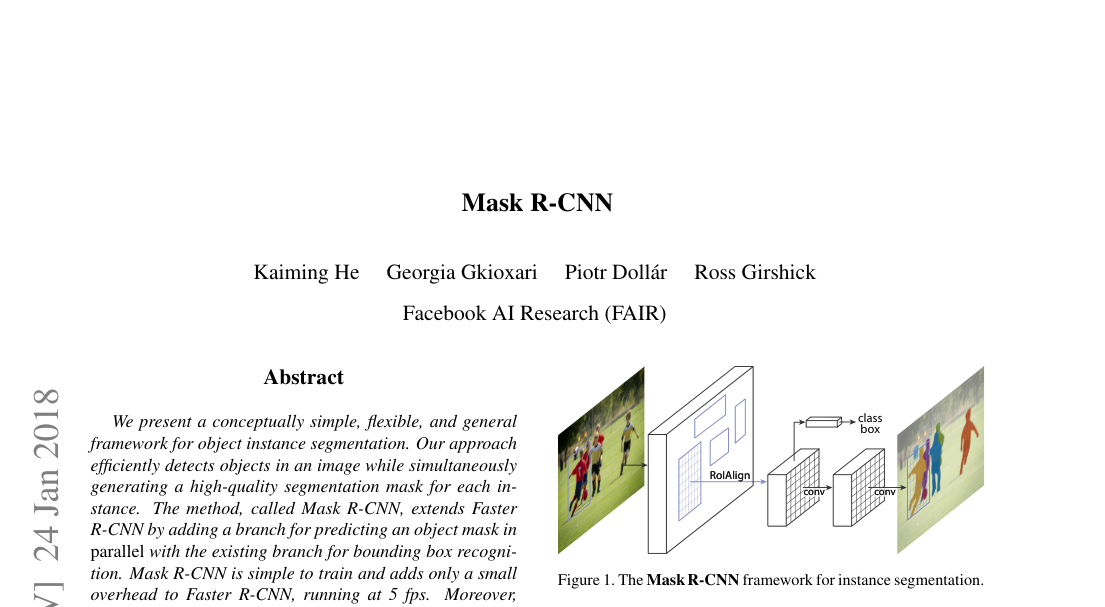

Mask R-CNN extends Faster R-CNN with a third per-RoI branch that predicts an $m \times m$ binary mask. The head is a small FCN on RoI-aligned features, instantiated with ResNet-C4 or ResNet-FPN detectors.

Loss / Objective

The objective adds a per-pixel mask loss on positive RoIs.

Algorithm

RoIAlign removes coordinate quantization by sampling exact floating-point locations with bilinear interpolation.

Training Procedure

• Backbone: ResNet-50/101-C4 or ResNet-50/101-FPN.
• Mask resolution: $m=28$.
• Training data: COCO trainval35k; ablations on minival.
• Image scale: shorter side sampled from $[640, 800]$.
• Inference: top 100 detections per image.
• Reported throughput: 5 fps for ResNet-101-FPN.

Evaluation

Datasets

• COCO trainval35k, minival, test-dev.
• COCO person keypoints.
• Cityscapes test.

Metrics

• COCO mask AP.
• $\mathrm{AP}_{50}$ and $\mathrm{AP}_{75}$.
• $\mathrm{AP}_S$, $\mathrm{AP}_M$, $\mathrm{AP}_L$.
• Box AP.
• Keypoint AP.

Headline results

• COCO test-dev, ResNet-101-C4: mask AP 33.1, $\mathrm{AP}_{50}$ 54.9, $\mathrm{AP}_{75}$ 34.8.
• COCO test-dev, ResNet-101-FPN: mask AP 35.7, $\mathrm{AP}_{50}$ 58.0, $\mathrm{AP}_{75}$ 37.8.
• COCO test-dev, ResNeXt-101-FPN: mask AP 37.1, $\mathrm{AP}_{50}$ 60.0, $\mathrm{AP}_{75}$ 39.4.

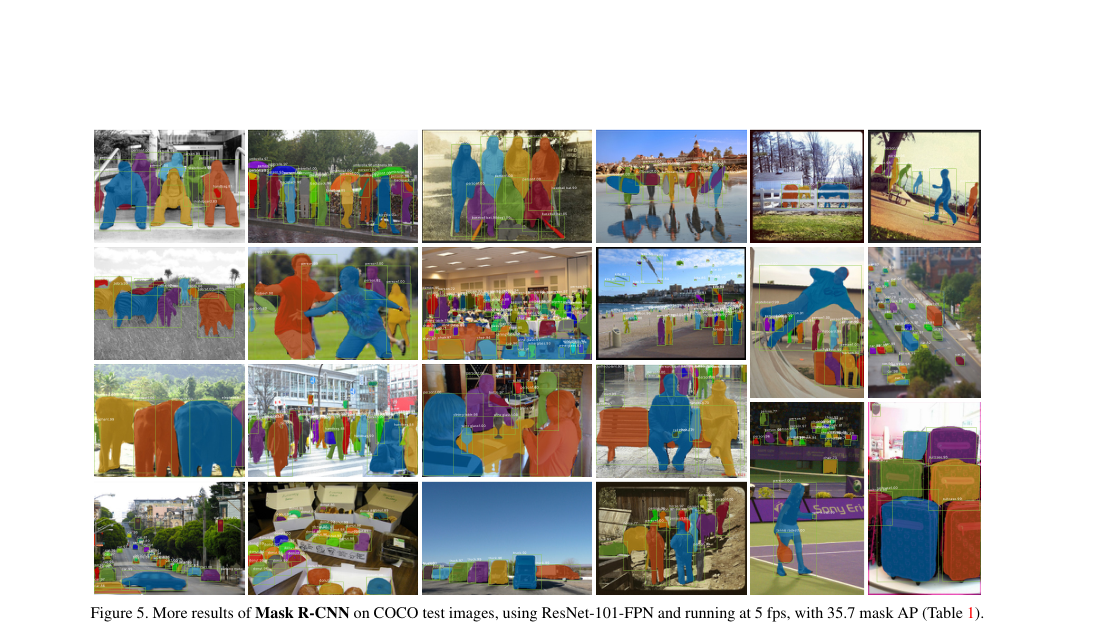

• COCO test images, ResNet-101-FPN: 35.7 mask AP at 5 fps.
• Cityscapes test: 32.0 AP.

Ablations

• RoIAlign vs. RoIPool: mask AP improves by relative 10% to 50%.
• Localization metric: RoIAlign gains grow at stricter $\mathrm{AP}_{75}$.
• Feature stride: stride-32 C5 with RoIAlign beats stride-16 C4, 30.9 AP vs. 30.3 AP.
• Mask parameterization: class-agnostic masks match class-specific masks closely.

Method Strengths and Weaknesses

Strengths

• Adds masks to Faster R-CNN with one parallel FCN head.
• RoIAlign fixes a concrete failure mode and yields large AP gains.
• Strong COCO accuracy: 35.7 mask AP with ResNet-101-FPN.
• Transfers to keypoints within the same instance-level framework.

Weaknesses

• Still depends on two-stage detection before mask prediction.
• Accuracy is highly sensitive to alignment details.
• Small-object performance lags medium and large objects.
• Reported speed uses heavy backbones, not lightweight real-time settings.

Suggestions from the authors

• Extend the framework to other instance-level recognition tasks.
• Explore stronger architectural variants on the same simple template.
• Use the method as a baseline for future segmentation systems.
• Transfer the framework to human pose estimation.

Links

Prior Papers

• @renFasterRCNN2015 — Mask R-CNN directly extends Faster R-CNN with a mask branch and RoIAlign.
• @heDeepResidualLearning2016 — ResNet provides the backbone family used in the main variants.
• @redmonYOLO2016 — a contemporaneous detection baseline that highlights the two-stage accuracy-speed tradeoff.

Further Papers

• @dosovitskiyViT2020 — transformer backbones become plausible successors for detection and segmentation pipelines.
• @liuSwinTransformer2021 — hierarchical transformer features directly target strong dense prediction backbones.
