NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis

Problem

Framing

Novel-view synthesis lacked a continuous scene representation that could recover complex geometry, non-Lambertian appearance, and high-resolution views from sparse posed images. NeRF closes this gap by fitting a 5D radiance field with differentiable volume rendering, positional encoding, and hierarchical ray sampling, then surpasses prior methods on PSNR, SSIM, and LPIPS.

Currently Used Methods

Direct antecedents

• Local Light Field Fusion — sampled local light fields for forward-facing view synthesis.
  • Limitation in context: weak extrapolation to complex geometry and lower fidelity than NeRF.
• Scene Representation Networks — implicit scene functions for novel-view rendering.
  • Limitation in context: lower image quality on both synthetic and real scenes.
• Neural Volumes — learned volumetric scene representation with rendering.
  • Limitation in context: discretized or sampled representations lose fidelity and efficiency.
• DeepVoxels — persistent 3D voxel features for object-centric view synthesis.
  • Limitation in context: voxel storage scales poorly and struggles with complex appearance.
• @mildenhallNeRF2020 — continuous 5D radiance field with differentiable rendering.
  • Limitation in context: rendering remains slow, around 30 seconds per frame.

Proposed Method

Architecture

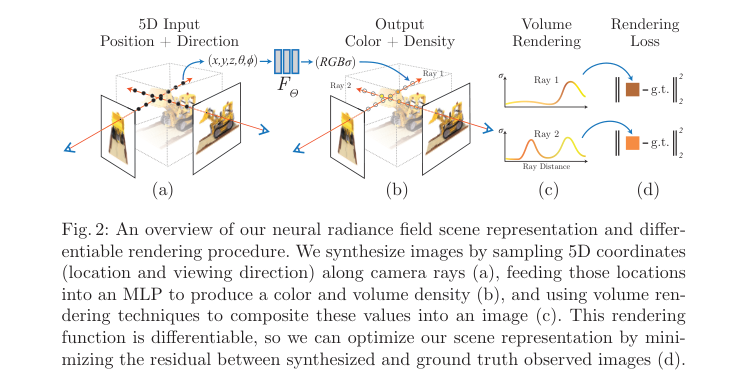

NeRF maps a 5D query $(\mathbf{x}, \mathbf{d})$ to density $\sigma$ and view-dependent color $\mathbf{c}$. The core model is an 8-layer ReLU MLP with 256 channels; density depends on position, while color also conditions on viewing direction. Two networks are used: a coarse model for proposal sampling and a fine model for final rendering.

Loss / Objective

Training minimizes coarse and fine RGB reconstruction over a batch of rays.

Sampling Rule / Algorithm

Rendered color is the volume-rendered integral along each camera ray, approximated with quadrature.

Hierarchical sampling draws fine samples from a piecewise-constant PDF induced by coarse weights.

Training Procedure

• Optimizer: Adam
• Learning rate: $5 \times 10^{-4}$
• Learning-rate decay: exponential, down to $5 \times 10^{-5}$ over optimization
• Batch size: 4096 rays
• Coarse samples per ray: $N_c = 64$
• Fine samples per ray: $N_f = 128$
• Position encoding frequencies: $L = 10$
• Direction encoding frequencies: $L = 4$
• Real-scene density noise: Gaussian, unit variance before ReLU

Evaluation

Datasets

• Diffuse Synthetic 360$^\circ$: 4 simple Lambertian objects
• Realistic Synthetic 360$^\circ$: 8 path-traced objects with complex materials
• Real Forward-Facing: 8 handheld cellphone scenes

Metrics

• PSNR $\uparrow$
• SSIM $\uparrow$
• LPIPS $\downarrow$

Headline results

• Diffuse Synthetic 360$^\circ$: PSNR 35.13, SSIM 0.983, LPIPS 0.027
• Realistic Synthetic 360$^\circ$: PSNR 31.01, SSIM 0.947, LPIPS 0.081
• Real Forward-Facing: PSNR 26.50, SSIM 0.811, LPIPS 0.250
• Drums scene PSNR: 25.01 vs 22.58 for Neural Volumes
• Ficus scene PSNR: 30.13 vs 24.79 for Neural Volumes

Table 1: Per-scene PSNR on the realistic synthetic dataset

Ablations

• Removing positional encoding drops realistic-synthetic PSNR from 31.01 to 28.77.
• Removing view dependence hurts specular scenes and lowers PSNR to 27.66.
• Removing hierarchical sampling lowers PSNR to 30.06.
• Using only 25 input images reduces PSNR to 27.78.

Method Strengths and Weaknesses

Strengths

• Continuous scene function avoids voxel-memory growth.
• Strong gains on complex synthetic scenes: PSNR 31.01, LPIPS 0.081.
• View-dependent color captures specular effects missing in ablations.
• Hierarchical sampling improves quality without dense uniform ray queries.

Weaknesses

• Rendering is slow: about 30 seconds per frame on a V100.
• Requires accurate camera poses and scene bounds.
• Assumes static scenes; no dynamics or transient effects.
• Per-scene optimization prevents instant deployment to new scenes.

Suggestions from the authors

• Accelerate rendering to avoid tens-of-seconds per frame inference.
• Extend the representation beyond static scenes.
• Reduce dependence on known poses and calibrated bounds.
• Improve handling of unbounded forward-facing real scenes.
