Human-Level Control through Deep Reinforcement Learning

Problem

Framing

Deep RL had not shown stable, end-to-end control from raw pixels across many Atari games. DQN closes this with a convolutional $Q$-network plus experience replay and a lagged target network, reaching above human score on 29 of 49 games.

Currently Used Methods

Foundational

• @krizhevskyAlexNet2012 — deep convolutional networks for visual representation learning.
  • Limitation in context: no control objective or temporal-difference bootstrapping.
• Playing Atari with Deep Reinforcement Learning — early single-paper DQN preprint on Atari from pixels.
  • Limitation in context: smaller evaluation scope than the Nature version.
• Reinforcement Learning with Linear Function Approximation — hand-crafted Atari features with linear value prediction.
  • Limitation in context: weak visual abstraction from raw pixels.
• Contingency Awareness in Reinforcement Learning — SARSA-style Atari agent with game-specific structure.
  • Limitation in context: needs stronger prior knowledge than DQN.
• Reinforcement Learning for Robots using Neural Networks — experience replay for stabilizing neural RL.
  • Limitation in context: no large-scale deep visual control demonstration.

Proposed Method

Architecture

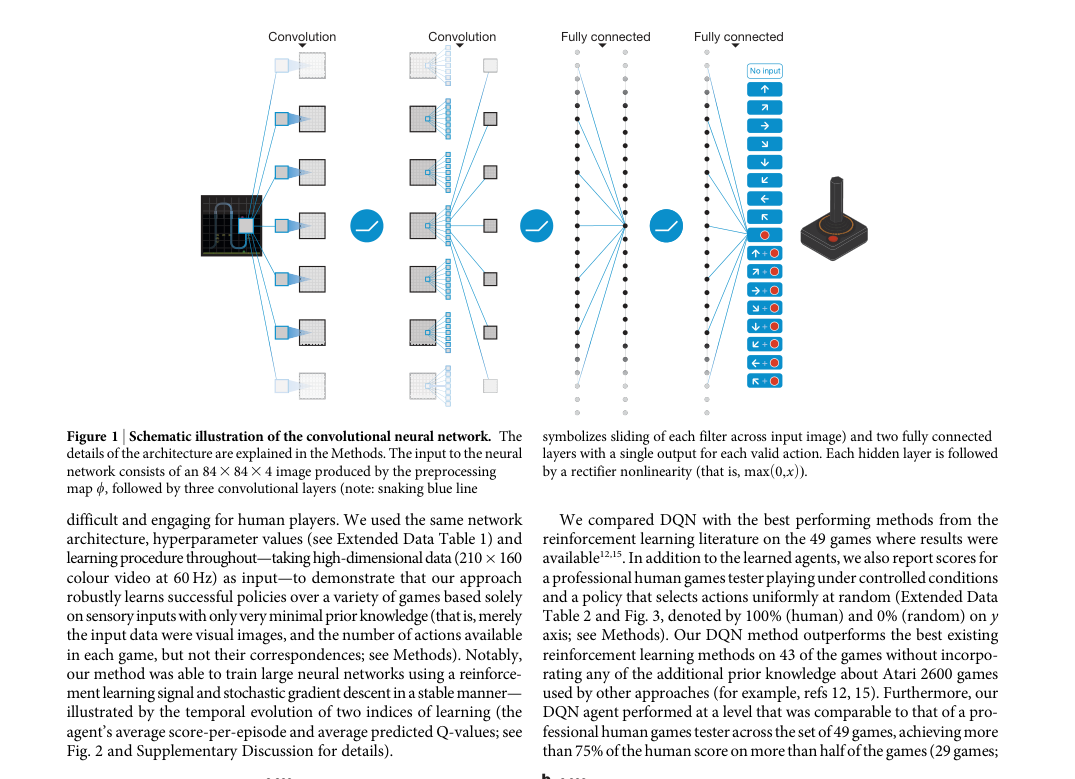

The agent maps a preprocessed $84 \times 84 \times 4$ state stack to one $Q(s,a)$ output per legal action. It uses three convolution layers, then two fully connected layers, with rectifiers after each hidden layer.

Loss / Objective

DQN minimizes one-step temporal-difference error against a frozen target network.

Sampling Rule / Algorithm

Action selection uses an $\epsilon$-greedy policy over the learned action values.

Training Procedure

• Replay memory: $10^6$ transitions.
• Discount: $\gamma = 0.99$.
• Minibatch size: $32$.
• Target network update: every $10{,}000$ parameter updates.
• Replay start size: $50{,}000$ frames.
• Frame skip: $4$.
• Exploration: $\epsilon$ annealed from $1.0$ to $0.1$ over $10^6$ frames.
• Training horizon: $50$ million frames.
• Optimizer: RMSProp.
• Learning rate: $2.5 \times 10^{-4}$.

Evaluation

Datasets

• Atari 2600 Arcade Learning Environment.
• 49 games from raw pixels.
• Two evaluation protocols: no-op starts and human starts.

Metrics

• Raw game score.
• Human-normalized score, with random policy as $0\%$ and human as $100\%$.
• Learning curves over training frames.

Headline results

• Atari-49, no prior game features: beats prior RL methods on 43 games.
• Atari-49, professional-human reference: exceeds $75\%$ of human score on 29 games.
• Atari-49, aggregate comparison: competitive with or above human on more than half the suite.
• Five validation games: convolutional DQN beats a linear approximator under matched training setup.

Ablations

• Replay removal: training degrades and becomes less stable.
• Separate target network removal: value learning destabilizes.
• Linear model replacement: scores drop on validation games.
• Representation analysis: final-layer features cluster semantically similar game states.

Method Strengths and Weaknesses

Strengths

• End-to-end control from pixels, rewards, and actions only.
• Replay plus target network directly attack divergence in nonlinear $Q$-learning.
• One architecture and hyperparameter set spans 49 games.
• Human-level or better play appears on a large fraction of the suite.

Weaknesses

• Sample inefficient: training uses $50$ million frames per game.
• Discrete-action formulation does not cover continuous control.
• One-step bootstrap target still inherits overestimation bias.
• Partial observability is handled only by stacking four frames.

Suggestions from the authors

• Extend value learning to harder planning and delayed-credit tasks.
• Reduce data requirements for real-world control domains.
• Learn stronger state representations under partial observability.
• Transfer knowledge across games instead of training from scratch.

Links

Prior Papers

• @krizhevskyAlexNet2012 — DQN imports deep convolutional visual feature learning into value-based control.

Further Papers

• @lillicrapDDPG2015 — extends deep value learning ideas to continuous-action actor-critic control.
• @mnihA3C_2016 — replaces replay-based stabilization with asynchronous parallel actor-learners.
• @schulmanTRPO2015 — offers a policy-optimization alternative to value-based deep RL.
• @schulmanPPO2017 — simplifies stable policy-gradient training for broad control tasks.
• @silverAlphaGo2016 — combines deep RL with search for superhuman game playing.
• @christianoRLHF2017 — reuses deep RL machinery in preference-based reward learning.
• @chenDecisionTransformer2021 — reframes sequential decision making with learned return-conditioned models.
